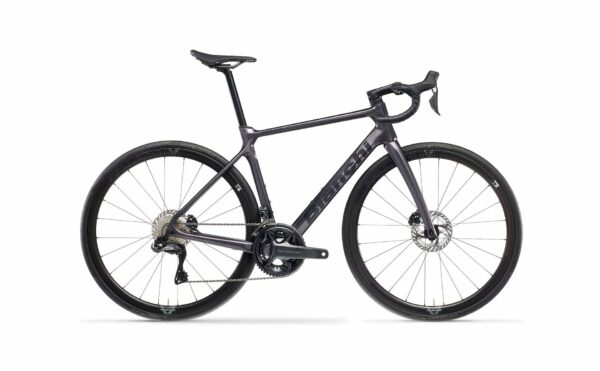

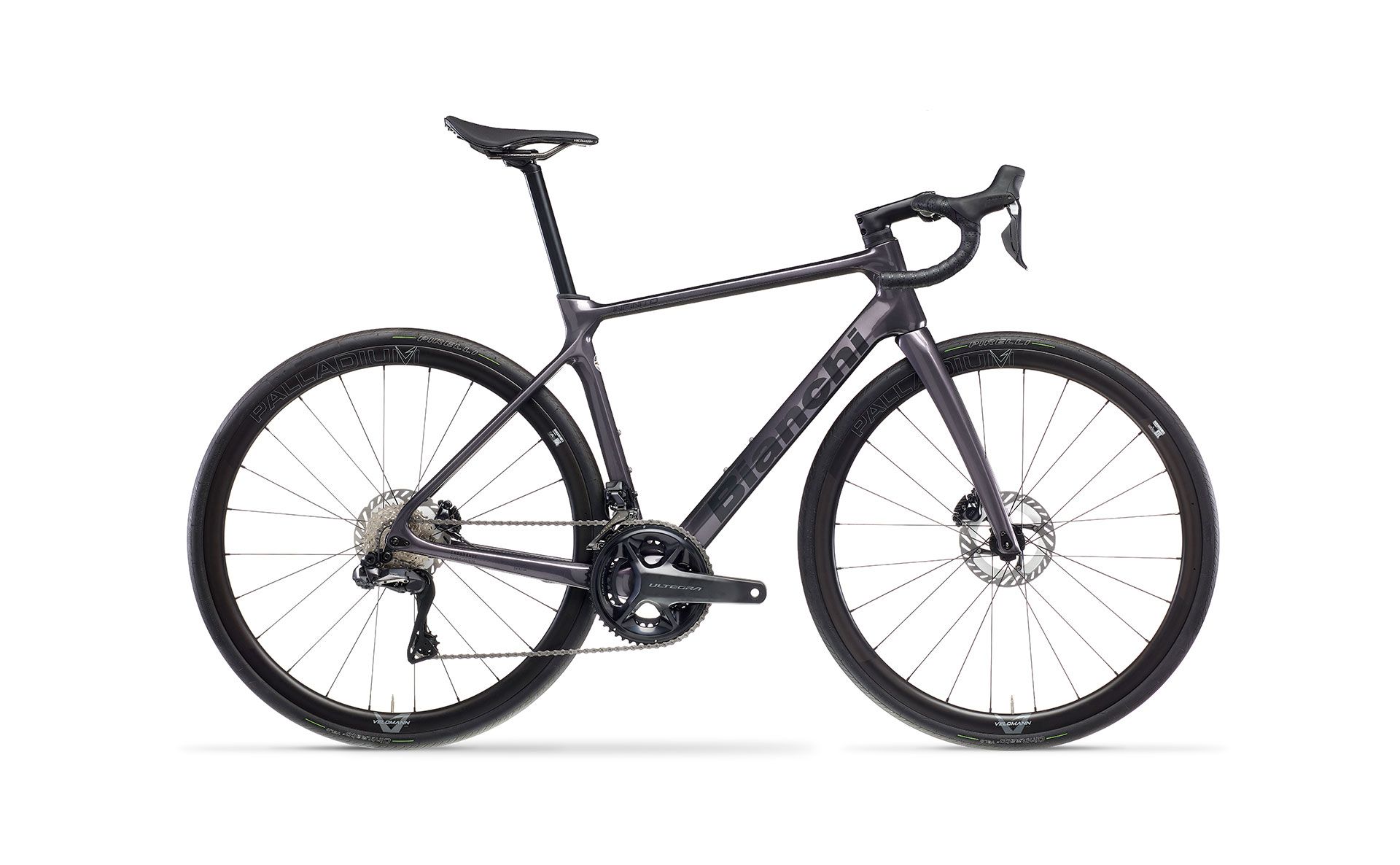

Bianchi Infinito

Beschreibung

Frameset

Frame: INFINITO carbon ICR – 1.5″- 1.5″, Disc Brake, Mechanical/Electronic Di2, compatible with 32″ tire, BBset pressfit 86,5×41, rear dropout 12 x 142mm thru axle sizes 47-50-53-55-57-59-61cm

Fork: Full Carbon ICR – 28″- 300mm – 1.5″ , dropout 12 x 100mm thru axle

Headset: Acros/FSA for ICR cable routing

Drivetrain

Shifters: 105 hydraulic disc brake for road ST-R7120(L), ST-R7120 (R)

Rear Derailleur: Shimano 105 12sp RD-R7100, 105 12-speed, max 36T

Front Derailleur: Shimano 105 12sp FD-R7100, brazed-on type

Crankset: 105 12sp FC-R7100, hollowtech 2, for rear 12- speed, 170- 172,5-175mm, 50x34T Crank Length: 170mm-47~53cm, 172.5mm-55~59cm, 175-61cm

Bottom Bracket: Shimano KSMBB7241B pressfit

Chain: Shimano CN-M6100, 12-speed

Cassette: 105 12sp 11-34T CS-R7100, 12-SPEED,11-12-13-14-15-17-19-21-24-27- 30-34T

Brakes

Brakes: Shimano BR-R7170 Hydraulic disc brake included in the shifter

Rotor: Shimano SM-RT70, 160mm front rear

Wheels

Wheels: Velomann alloy, disc brake, rim profile 30mm, hub TC j-bend, round spokes 2mm black, clincher 622x19C,w\tape, front HH12 – rear HH12/142

Tire: Pirelli P7 Sport 32mm (622-32), TechBelt, 60tpi

Cockpit

Stem: Velomann Viper, Alloy 6061, raise – 7°, Oversize, 1 1/8″ Ext: 90mm-47cm, 100mm-50’53cm, 110mm-55~57cm, 120mm-59~61cm

Handlebar: Velomann Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm Size: 400mm-47~53cm,420mm-55~57cm, 440mm-59″61cm

Grips / Extensions: Bianchi Hexagon tape, 2.5mm thickness, full black

Saddle

Seatpost: Velomann, custom D-shape, alloy shaft 2014, head alloy 6061, Setback 25mm L350mm =47>57cm; L380mm= 59>61cm

Saddle: Velomann Mitora139, 139x250mm rail in Aisi
