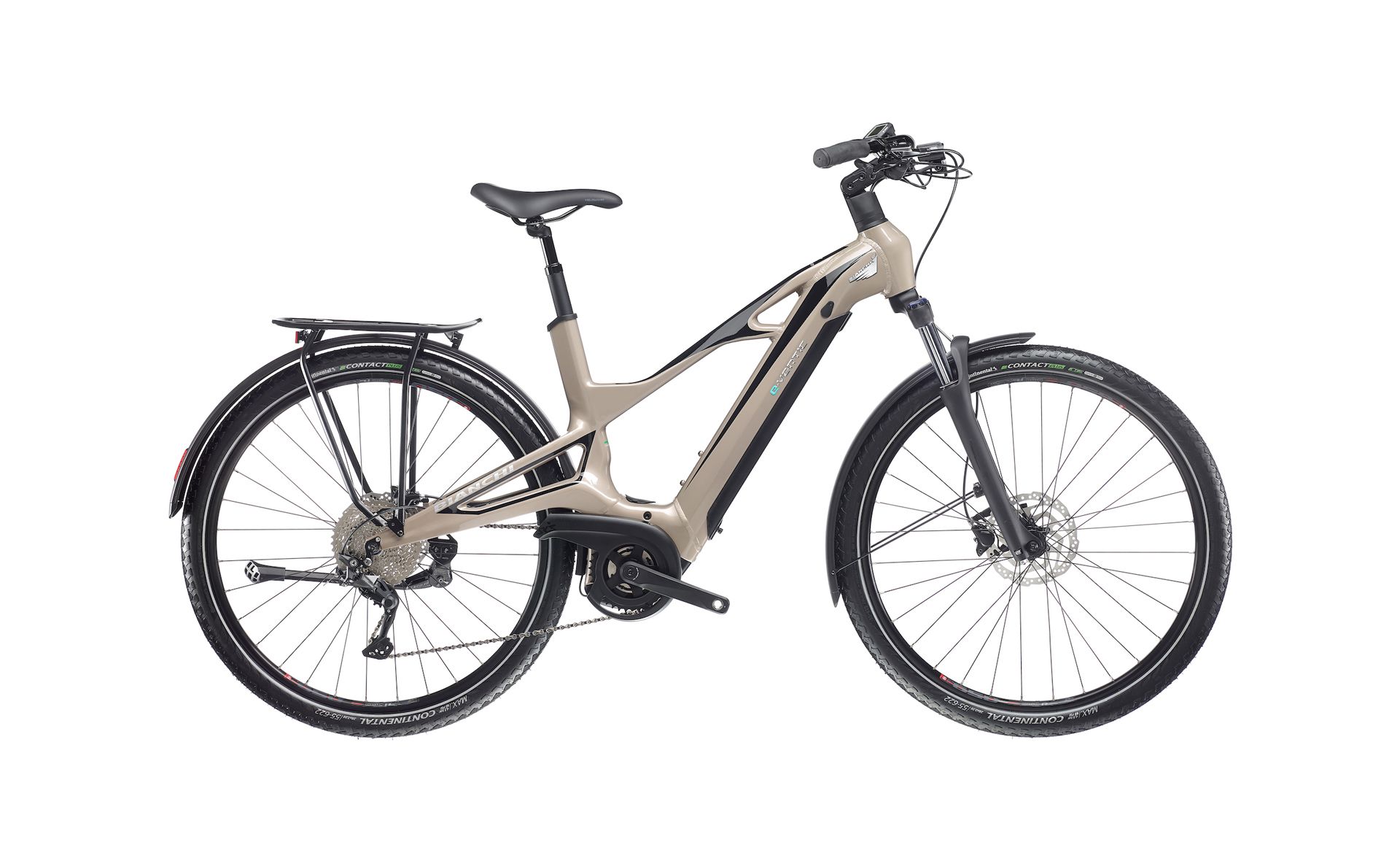

Bianchi T-Type ST

Beschreibung

Motor Unit

Motor: Bosch Active Plus motor unit

Battery: Powertube 400wh integrated battery

Frameset

Frame: e-VERTIC T-Type Step-through ALU sizes: 43, 48, 53 – 9×135 mm quick release dropouts – Post mount 180 disc brake type

Fork: Suntour 29″, travel 100mm, COIL w/Preload adjuster, CR plating, Pitch 130 mm, 1-1/8″(TS), OLD 9-100, max rotor 180, post mount 160mm direct

Headset: Acros 1,5″“ top / 1,5″“ bottom – bearings – integrated cable routing 1 1/8“ crown race for ZS56 Head tube cover

Drivetrain

Shifters: Sram X5 TRIGGER REAR 9sp BLK 2200MM CABLE

Rear Derailleur: Sram RD X7 SHORT CAGE ALUMINUM 9sp

Crankset: FSA E-Bike Diecast Crankset – CK220 Gen 3 / 170mm / Die cast aluminum FSA Direct Mount Steel Chainring – 38T / w/HT Steel /  ED / C.L. 50mm Bosch Gen3 Bolt – Bosch Gen3 crank bolt Black

BB: included in the motor

Chain: KMC e10S NPBK 1/2″ x 11/128″

Brakes

Brakes: Shimano, BL-MT200, BR-MT200, BLACK, SM-MA-F180P/P2, RESIN PAD, 1000MM HOSE / 1700 HOSE

Rotor: Shimano, M 180MM, W/LOCK RING, FOR RESIN PAD ONLY

Wheels

RearHub: Shimano, FOR CENTER LOCK ROTOR, 32H 8/9/10-SPEED,OLD:135MM,AXLE:146MM,QR:170MM, W/O ROTOR MOUNTCOVER

Rims: EBIKE 650 TR 28″ – ETRTO 622 x 23C, 32hole, height 18mm, 6,5mm valve

Tire: Continental CONTACT Urban

Cockpit

Stem: Velomann, integrated cable routing, Barbore 31,8 mm, Extension 90 mm

Handlebar: Velomann, 31.8*630 / Rise 34mm / Back Sweep 41°

Grips: Herrmans, 130mm/130mm, d.22mm

Saddle

Seatpost: Velomann LT2 31.6*350 travel 50mm

Saddle: Velomann, black cover 8067 size 270x162mm, 385gr.

Accessories

Mudguards: Racktime Alumee 62mm, 28″, AL 6063-T4, black

Kickstand: Bianchi Custom modello KING EVO XL w/o screw

RearCarrier: Racktime, 28″, Max load 25Kg, black, IMM mounting

FrontLight: Lezyne, 65 lux, Center mount, 140cm cable w/ Bosch connector, w/ reflector

RearLight: Trelock Ebike6-12V

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
