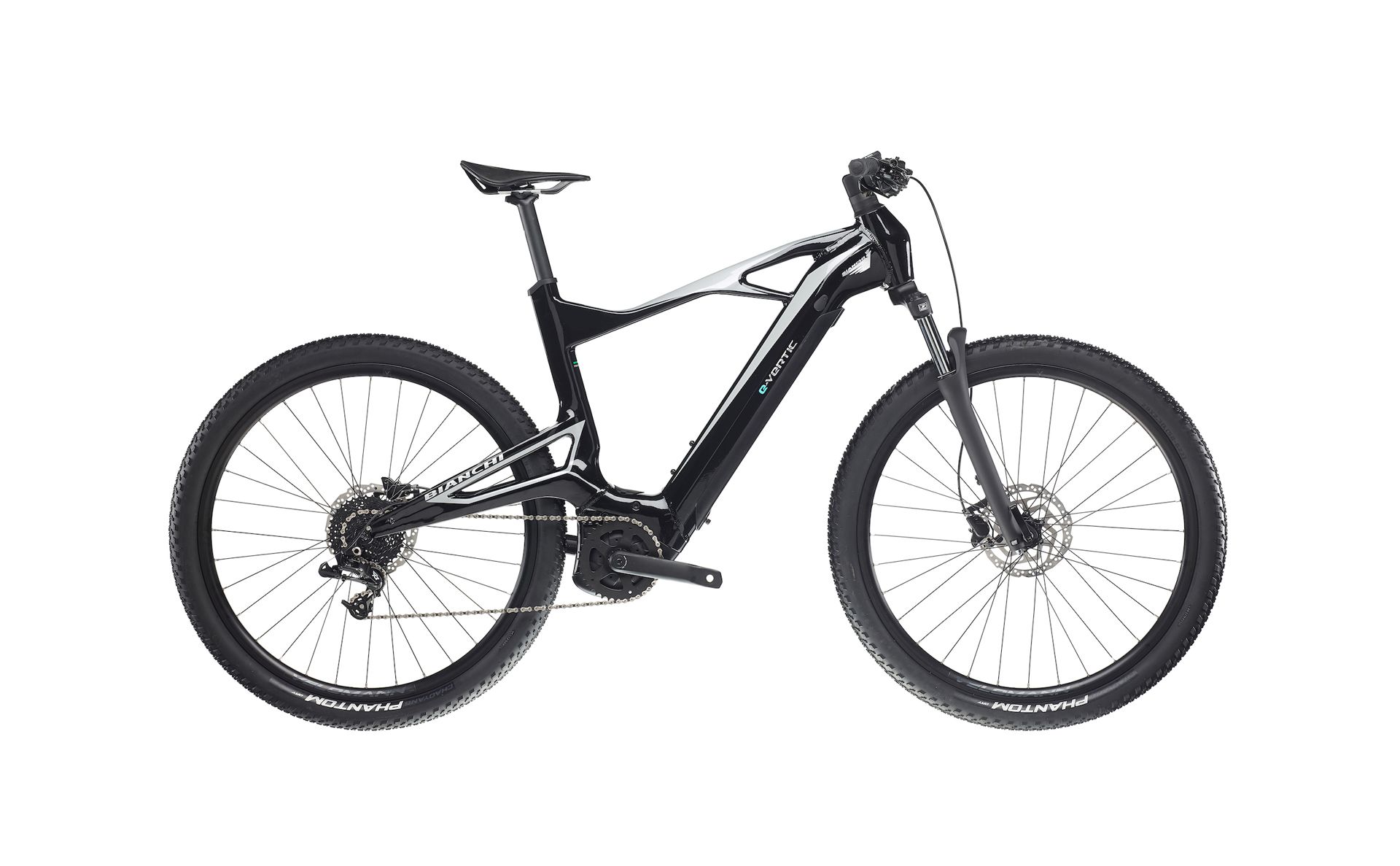

Bianchi E-Vertic X-Type

Beschreibung

Motor Unit

Motor:Bosch Performance Line CX motor unit

Battery: Bosch Powertube 625Wh integrated battery, w/Display Purion

Frameset

Frame: e-VERTIC X-Type ALU sizes: 43-48-53 – 100 mm front travel – HT 1,5″“ straight – for integrated cable routing – Seatpost 31,6 mm – 9×135 mm dropouts

Fork: SR Suntour XCM34 Coil BOOST NLO DS 29” 120mm

Headset: Acros Headset 1,5″ top / 1,5″ bottom – bearings – integrated cable routing

Drivetrain

Shifters: Shimano, DEORE, RIGHT, 10-SPEED RAPIDFIRE PLUS 2400MM INNER

Rear Derailleur: Shimano DEORE, SGS 10/11-SPEED, TOP NORMAL, SHADOW PLUS DESIGN, DIRECT ATTACHMENT

Crankset: FSA Mega Thoot 34T, BCD104, Steel, ED black FSA W0146 1x Steel Spider BCD104/Steel/ED/ Chainline 50mm

BB: included in the motor

Chain: KMC e10S NPBK 1/2″ x 11/128

Brakes

Brakes: Shimano DISC BRAKE ASSEMBLED SET, BR-MT200, SM-MA-F180P/P2, RESIN PAD, 1000MM HOSE/1700MM HOSE

Rotor: Shimano, SM-RT10, M 180MM, FOR RESIN PAD ONLY

Wheels

RearHub: Formula DISC HUB, CENTER LOCK, J-BEND, W/QR, FOR SHIMANO MTB 8/ 9/ 10/ 11-SPEED – FH-04 – 32H – O.L.D. 135 mm – AXLE 145 mm – BLACK ANO. – w/QR-22

Rims: Velomann E-Sport Tubeless Ready 29″, 25-622, 32 hole black

Tire: Chaoyang Phantom dry 29×2.3, 60tpi, 2C-MTB

Cockpit

Stem: Velomann Viper0, 60 mm, 31,8 mm, 1″1/8

Handlebar: Velomann, width 740mm, diam.31,8mm, 9° backsweep, 15mm rise,DB Alloy

Grips: T-One Rock T-GP34 single lock grip , TPR, plastic inner body, aluminium clamp

Saddle

Seatpost: Velomann , lenght 350mm for 15,17“ size and 400mm for 19,21“, diam.31,6mm, 0mm seatback

Saddle: Selle Italia Model X Superflow

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
